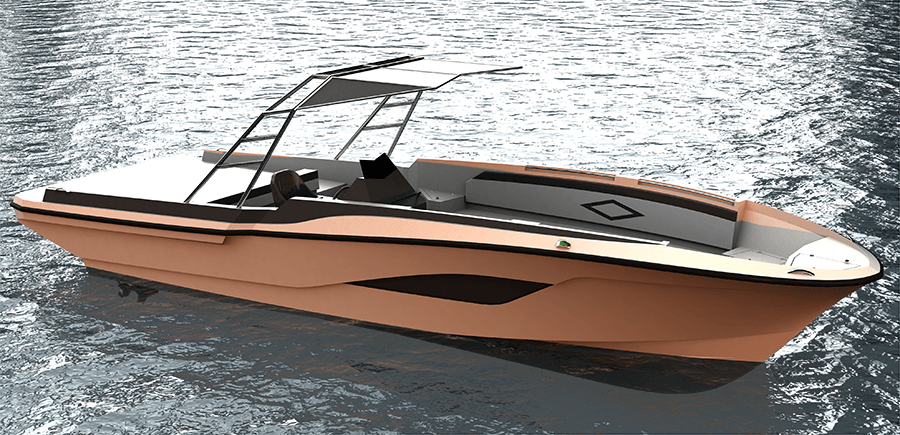

Excursion 36
Concept boat design is the design work done for the purpose of providing the desired purposes on the boat. Excursion 36 has a comfortable seating area, sun pad area, icebox, toilet and much storage areas. The Boat can use V-Drive System, Waterjet system or Sterndrive system. Excursion 36 has 13 person capacity.
Technical Specifications
| Overall Length | 10.85 m |
| Body Length | 8.70 m |
| Waterline Length | 8.42 m |
| Waterline Beam | 2.55 m |
| Beam | 3.25 m |
| Draught | 0.62 m |
| Light Displacement | 2,100 kg |
| Full Displacement | 4,640 kg |
| Fuel Tank | 370 lt |
| Capacity | 13 persons |
| Construction | GRP |
| Design Category | C |
